Medical equipment line
Keywords:
Description
|
Product Name: |
Medical device cables |
Operating Temperature: |
-20℃+85℃ |
|
Sheath Material: |
Medical PUR material |
Product Features: |
Integrated design, durable and flame retardant |
|
Conductor Material: |
Bare copper/tinned copper |
Applications: |
Medical instruments and equipment |
• Product Introduction
Medical Instrument Customized Tracheal Multi-core Integrated Hybrid Cable is a cable specially designed for medical equipment, which combines the functions of trachea and multi-core wire, and can meet the multiple needs of medical equipment for data transmission, signal control and gas transmission.
• Features:
Multi-core design: The cable contains multiple cores, each of which can independently transmit data or signals, thus meeting the needs of medical devices for multiple signal transmission.
Trachea function: The trachea is integrated into the cable, which can be used to transport gases, such as oxygen, nitrogen, etc., to provide the necessary gas supply for medical devices.
All-in-one design: The air hose and multi-core wires are cleverly combined to form a single unit, simplifying the layout and installation of cables, and improving the cleanliness and reliability of the equipment.
Customization: The cable can be customized according to the specific needs of medical equipment, including the number of cores, wire diameter, sheath material, shielding method, etc., to meet the special needs of different medical equipment.
• Product analysis

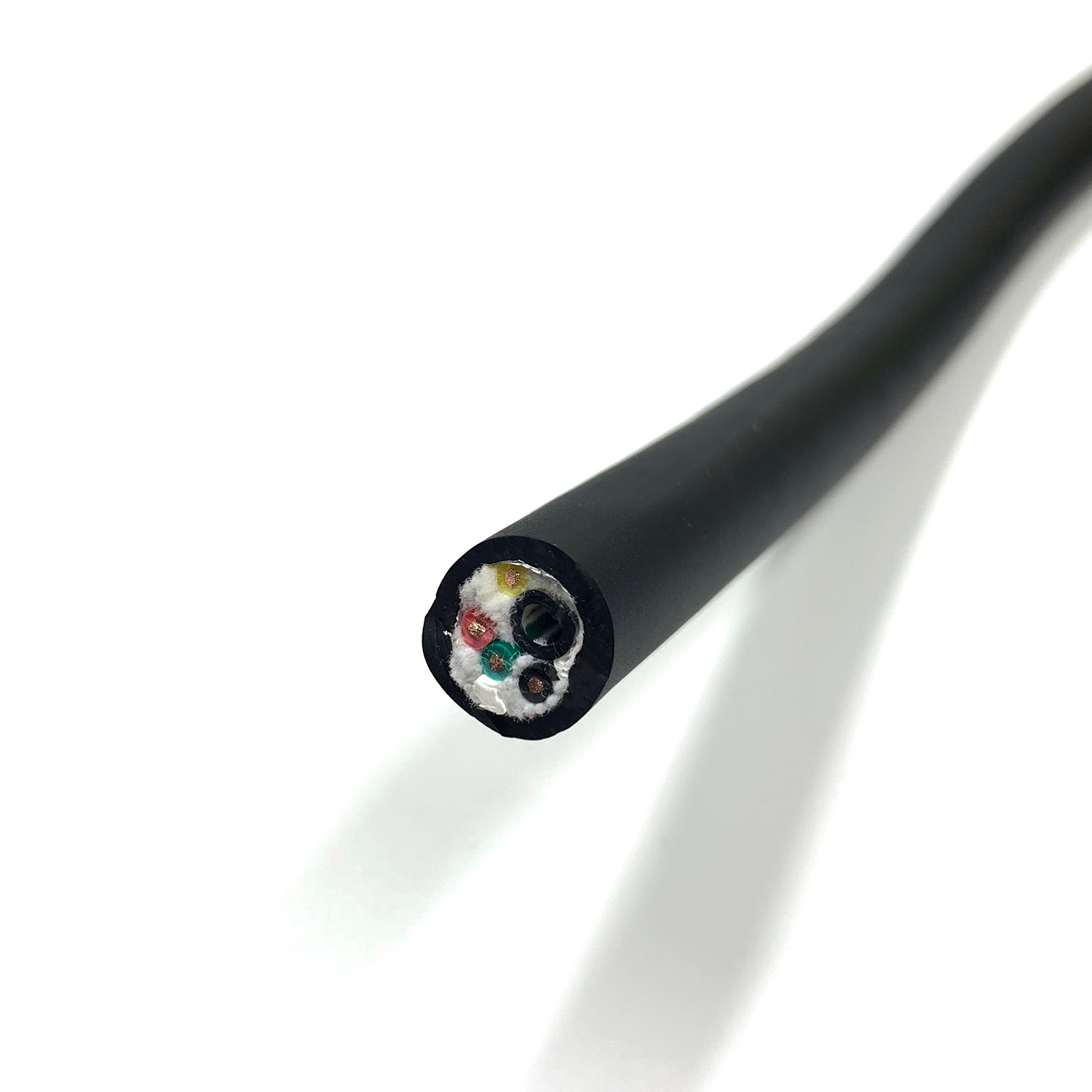

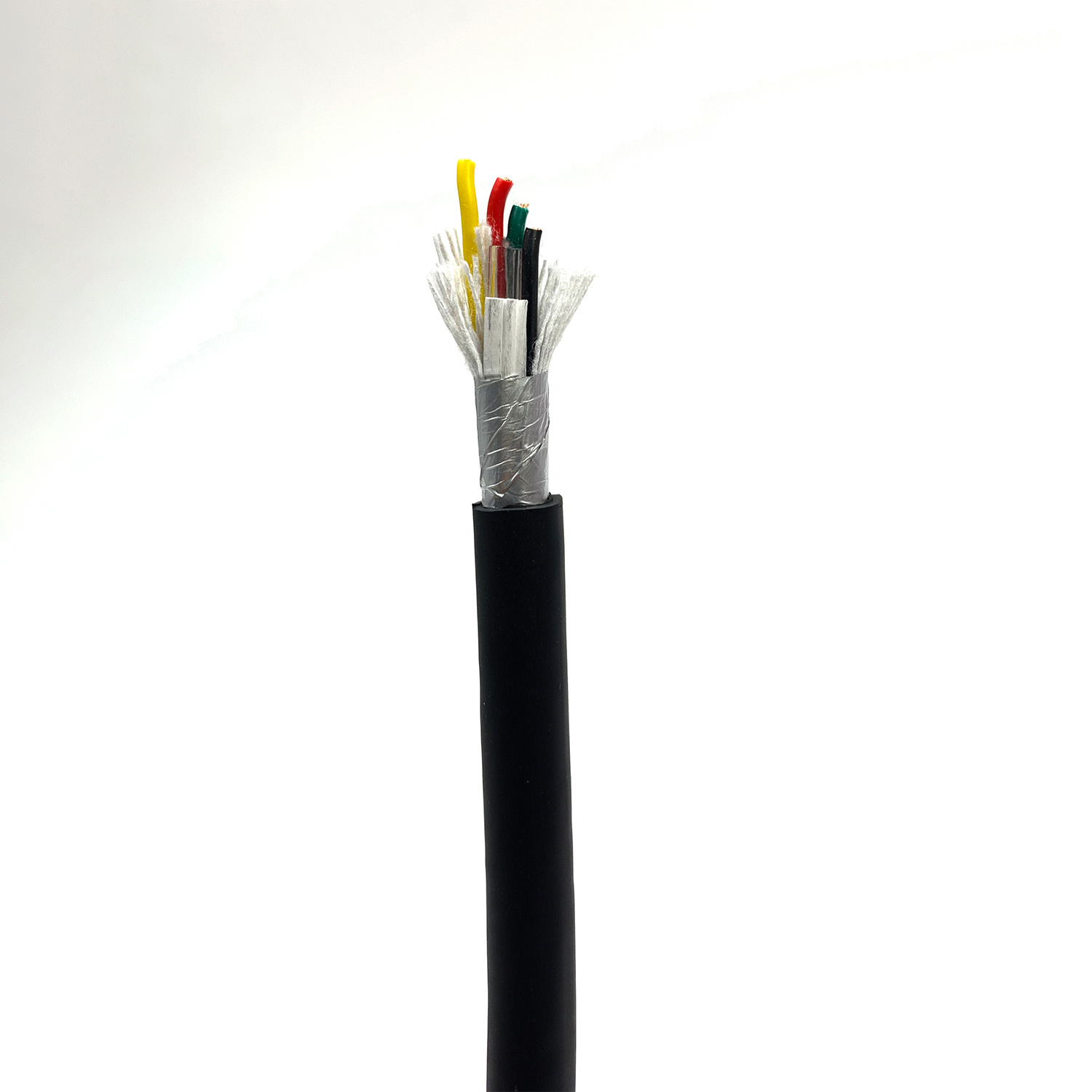

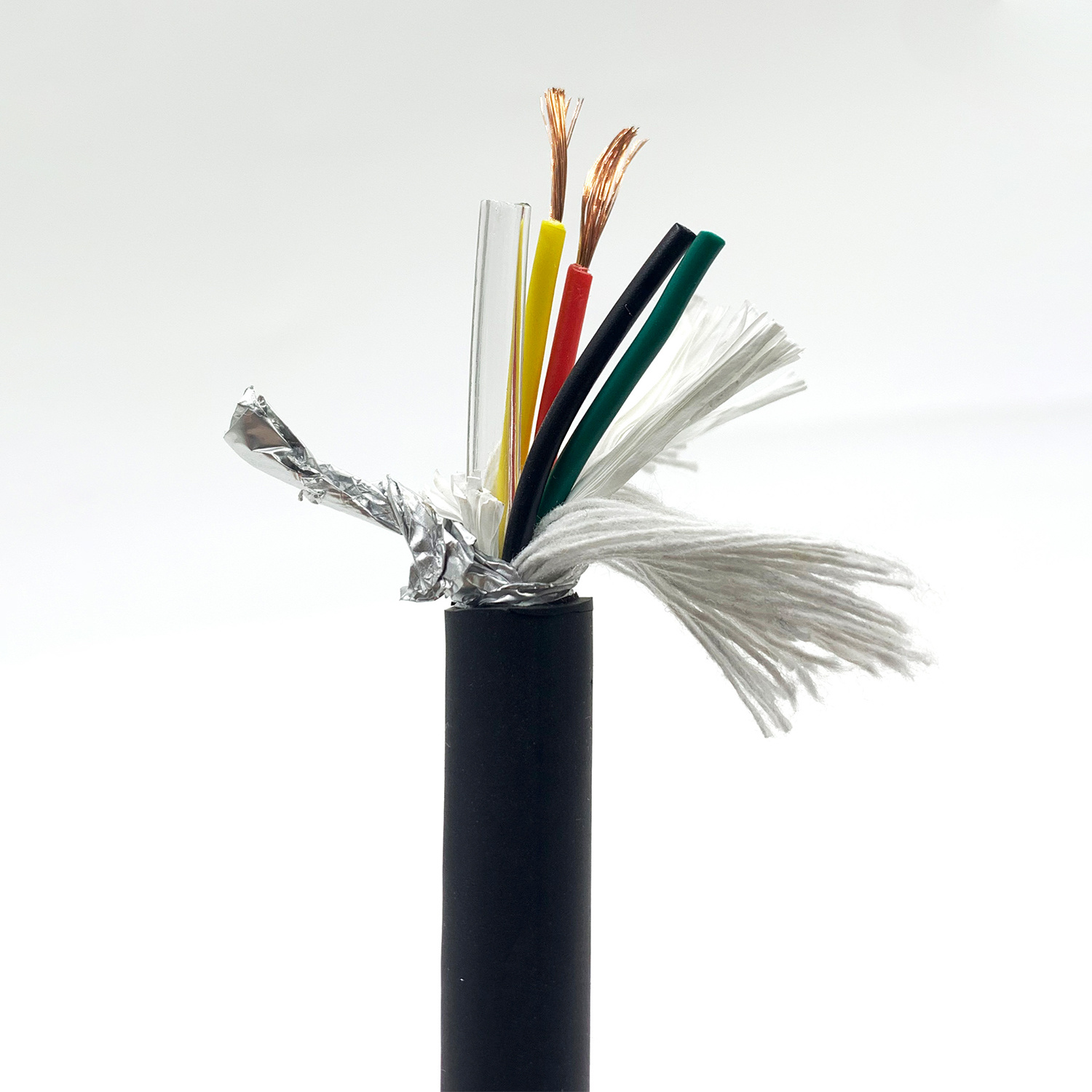

This is a kind of medical composite cable, including power supply, signal cable, transparent trachea, the outer layer is protected by a sheath, the inside is filled with cotton thread to prevent wear, and the tin foil shields interference, which is suitable for medical equipment such as ventilators and anesthesia machines.

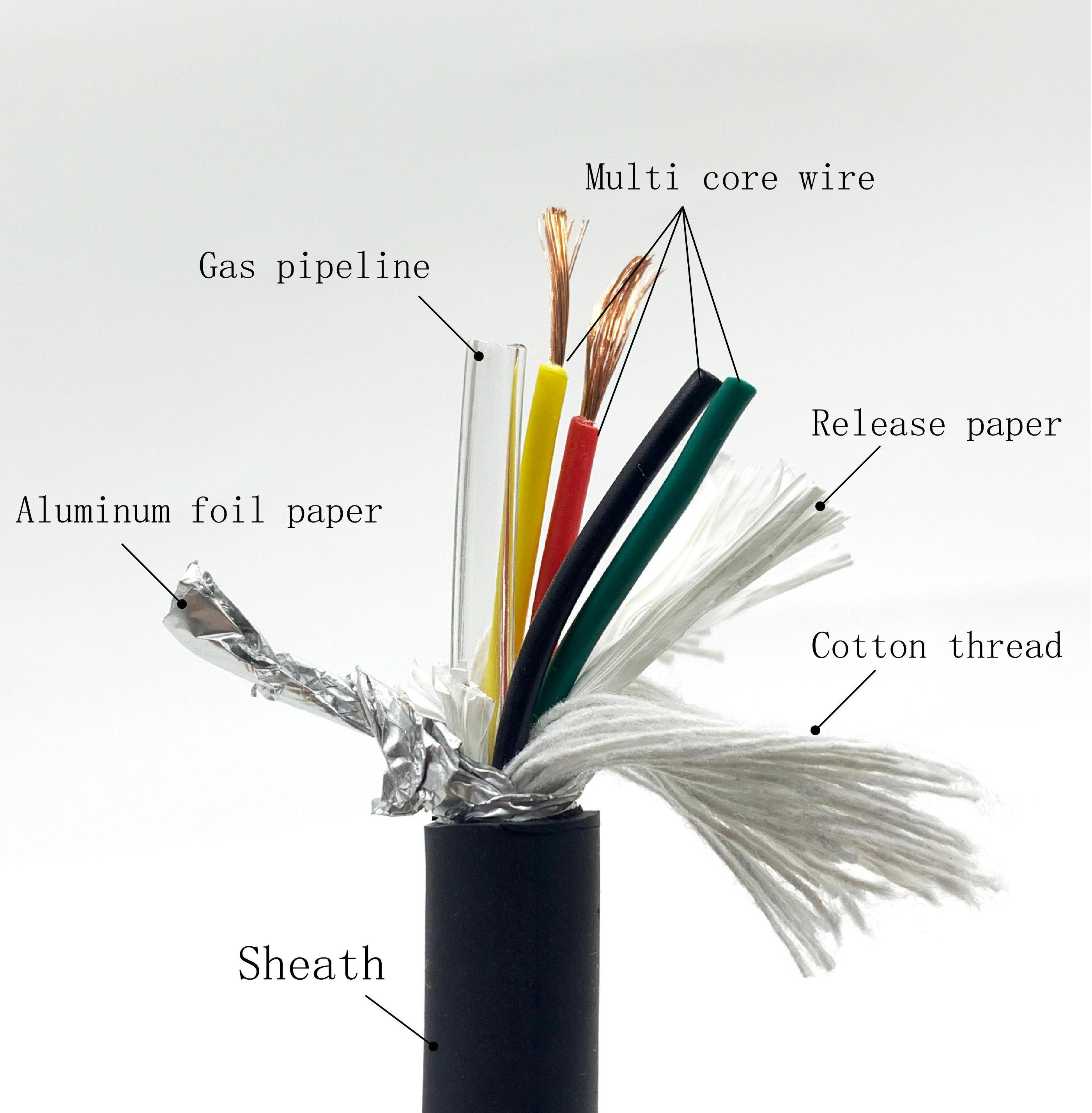

Structural composition and function:
Four-core wire
Function:
2-core power cord: power supply (e.g. 24V medical equipment)
1 core signal cable: transmit data
1-core spare cable: redundant design for enhanced reliability
Transparent tubing (1 core)
Material: Medical-grade PU (sterilization-resistant, autoclavable)
Function: Oxygen/liquid medicine, transparent design for easy observation of flow status
Other key materials
Sheath: PUR (abrasion resistant, bending resistant)
Tin foil shielding: prevents electromagnetic interference (ensures stable signal of monitor/surgical robot)
Cotton thread filling: Reduces internal friction and extends cable life
Isolation paper: cushioning protection, reduce the friction between the cores, and avoid the damage of the insulation layer caused by long-term bending
• Fields of application
Customized tracheal multi-core integrated hybrid cables for medical instruments and equipment are widely used in various medical equipment, such as ventilators, anesthesia machines, monitors, hemodialysis machines, etc. These devices often need to transmit data, signals, and gas at the same time, making this type of cable an ideal choice.
